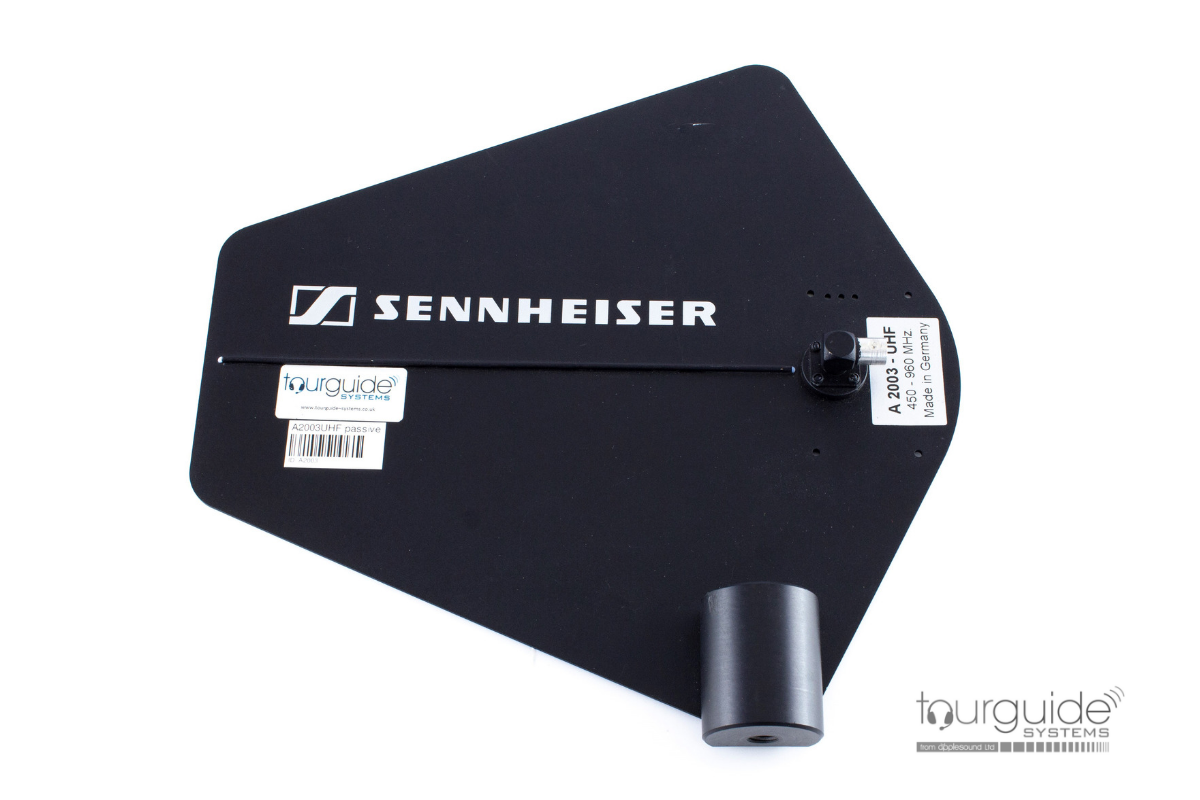

A2003UHF Passive Wideband Directional Antenna

This directional UHF antenna is used with Sennheiser SR2020D stationary transmitters for tourguide systems; Sennheiser Evolution Wireless UHF radio transmitters SR2000 IEM, SR20250 IEM, SR 300 IEM, and radio microphone receiver EM 100/300/500.

Always position the antenna as close as practical to the transmitter(s) or receivers to keep the cable length short to minimise signal loss.

We stock a variety of suitable floor stands & tripods, and clamps to temporarily mount to scenery, truss etc.

TECHNICAL SPECIFICATION

Impedance 50 Ohm
Connector BNC
Pick-up pattern directional
Frequency range 450 - 960 MHz
Antenna gain 4 dBi
Opening angle ± 50 degrees

FAQ: How do I mount a larger remote mount antenna?
The larger remote mount antennas (A2003-UHF and A1031-U) by Sennheiser utilize the standard 3/8" and 5/8" threaded connections and so can be mounted on a typical microphone stand/clamp.

NOTE: Antennas should be mounted at least 24 inches off the wall or ceiling. Multiple antennas should be a minimum of 11 feet apart.
