ATS-80 Two-way Tour Guide System

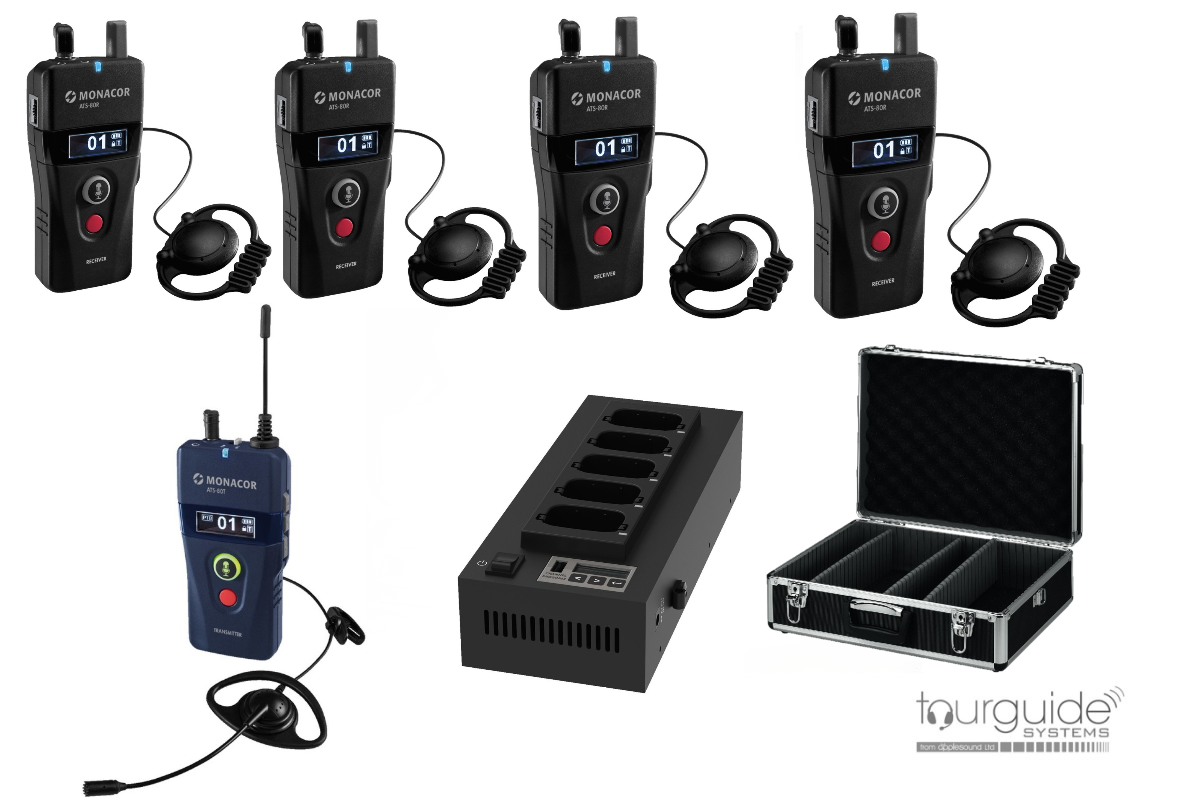

The ATS-80 digital tour guide system offers excellent value for money, backed by a three-year warranty. Buy individual components or choose from our System Packages – everything you need, ready to go on your walking tour!

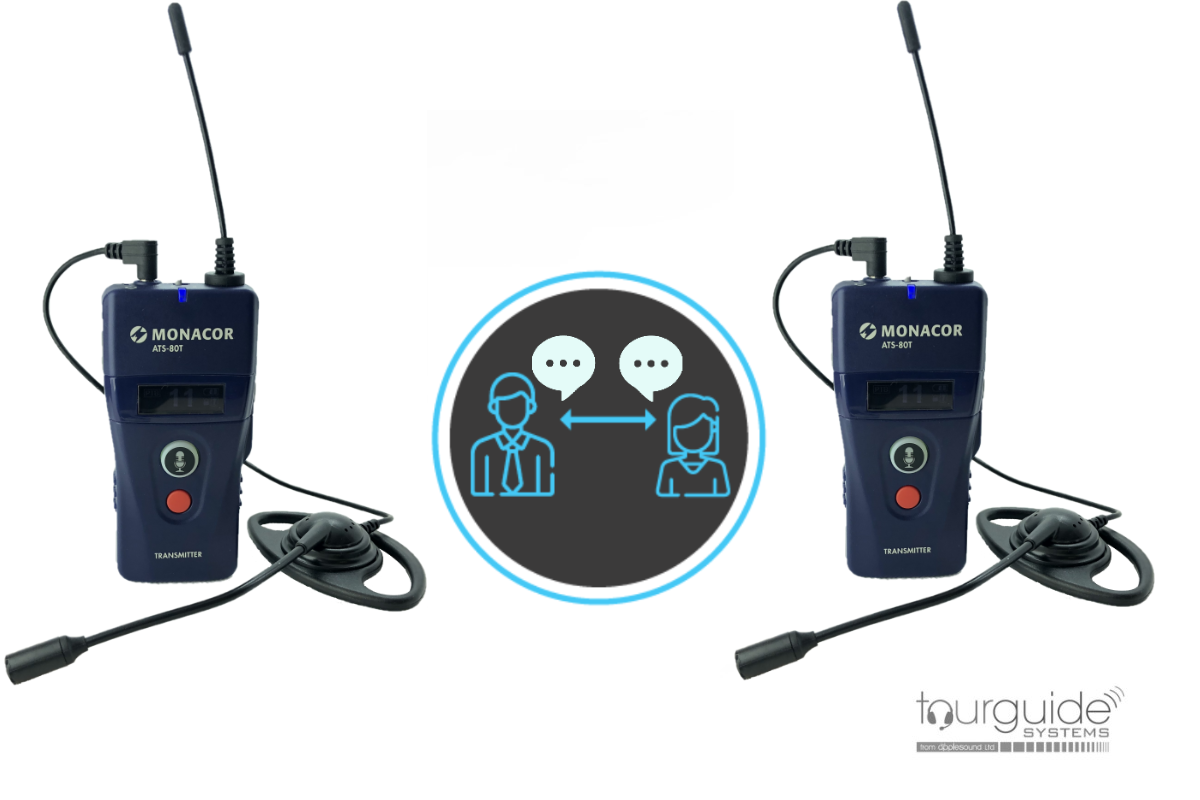

ATS-80 pair of devices3 year warranty demo kit available

ATS-80 Tour Guide System offers a low-cost solution to provide two-way speech on the tour, enhancing the experience for your guests.

The ATS-80 digital tour guide system is suitable for any application needing two-way communication, e.g. training sessions, lectures with questions and answers from all participants, and group tours or factory tours with two guides presenting.



TWO-WAY TOUR TALK MODES

icon two-way tour talkTOUR GUIDE MODE - The tour guide leads the group, allowing any one participant to ask a question through their receiver.

INTERACTIVE TEACHING MODE - The tour guide leads the group with support from the assistant guide - both may speak simultaneously, hands-free, to the group of listening participants. The Assistant mutes their microphone to allow any of the participants to ask a question by pressing a button and talking into their device - the tour Leader may respond.

DISCUSSION MODE - The tour guide leads the group and discusses the tour with the assistant guide - both may speak simultaneously, hands-free, to the group of listening participants.

Learn more about the Tour Talk Modes here



TRANSMITTER FEATURES

  • Integrated microphone for hand-held operation
  • Use the supplied plug-in earphone/microphone for hands-free operation
  • Audio line input via 3.5 mm stereo jack for external player
  • High-contrast OLED display with battery status indication
  • Talk/mute button
  • Channel lock
  • Supplied with belt clip and lanyard

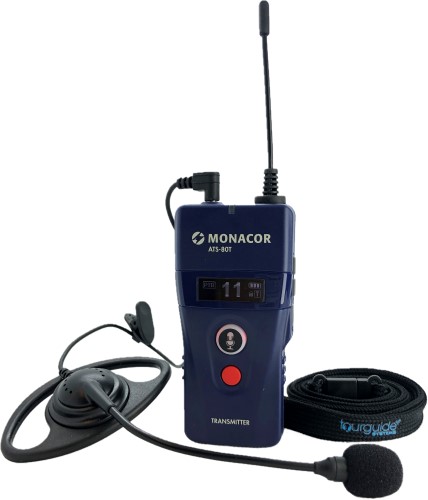

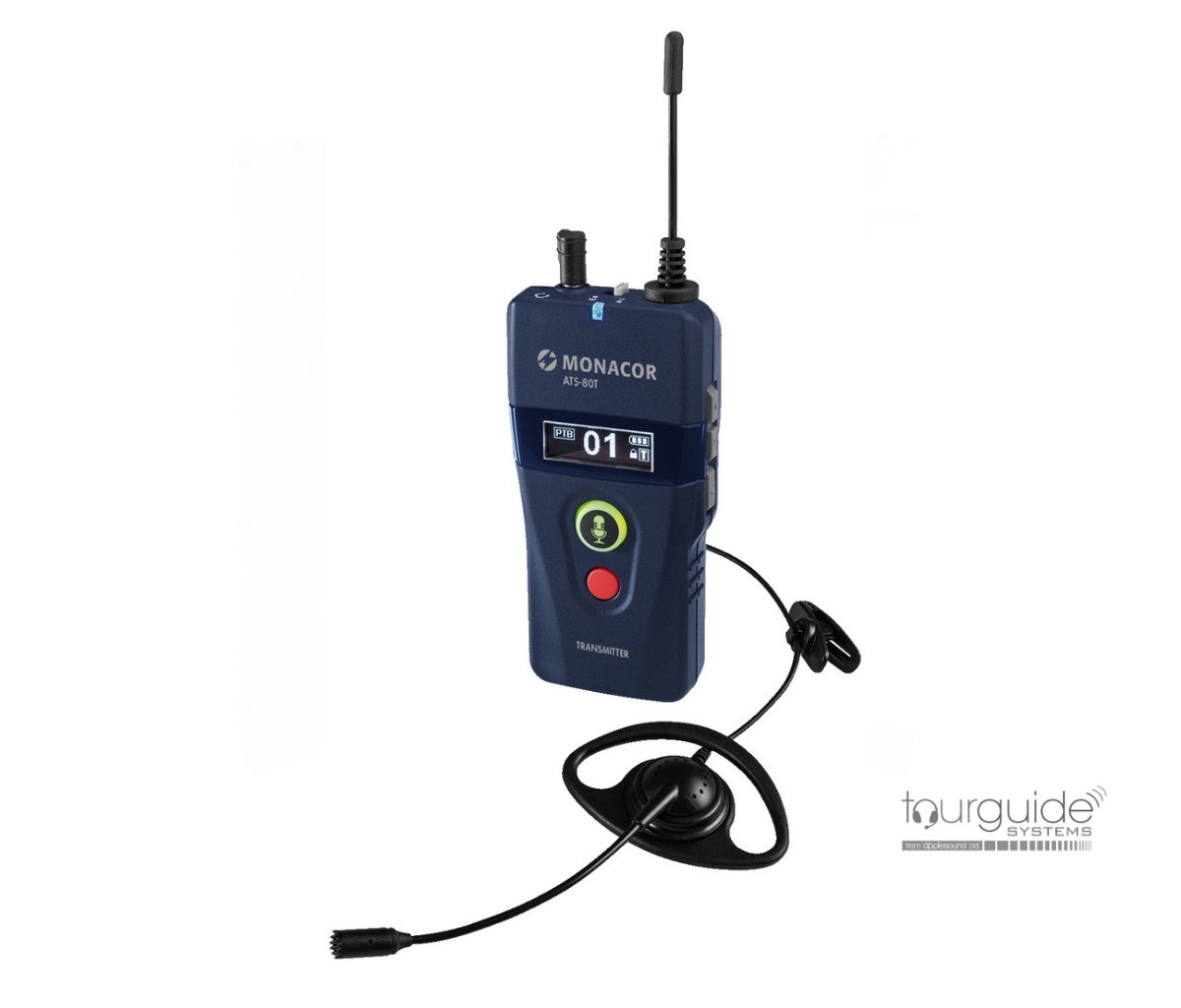

ATS-80T Transmitter

TOUR GUIDE LEADER FUNCTIONS

icon roll-call

ATTENDANCE MONITORING

By the press of a button, the group leader can check how many receivers are switched on and thus if all members of the group are present.





icon call signal to gather

CALL SIGNAL

This useful function allows your tour group a pause to take-in a panoramic view, for example, and take photos; when you are ready to continue the tour, ask the group to gather by sending a call signal - your group's corresponding receivers display GATHER, the talk button flashes red and the receiver vibrates for 30 seconds.



icon - alert signal

ALERT SIGNAL

When a member of the group leaves your reception range, a warning signal will sound at the corresponding receiver, their talk button will flash in red and the display will show OUT OF RANGE.







RECEIVER FEATURES

  • Integrated microphone for hand-held operation
  • Supplied plug-in earphone
  • High-contrast OLED display with battery status indication
  • Talk/mute button
  • Channel lock
  • Supplied with belt clip and lanyard
  • Hearing Aid Compatible with the addition of a plug-in neck loop.

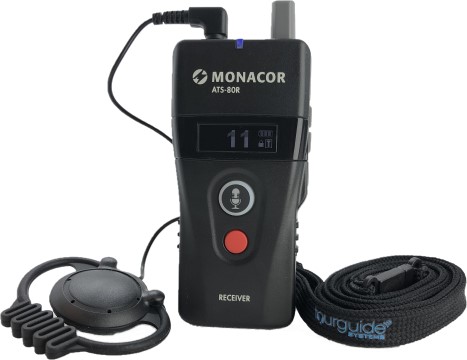

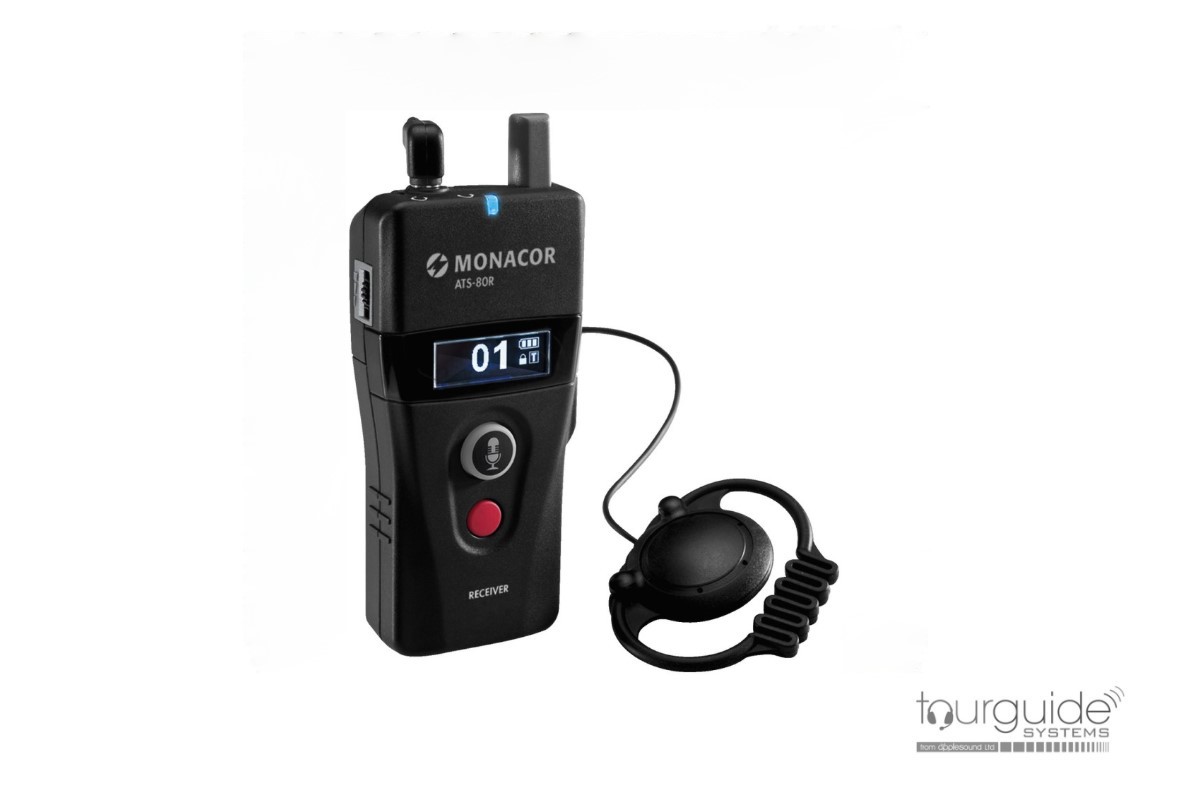

ATS-80R Tour Guide Receiver

SYSTEM FEATURES

  • High resistance to interference due to digital transmission
  • Long operating range - up to 100m (line of sight)
  • Up to 7 simultaneous groups (using licence free channels in the UK and EU)
  • 3 different operating modes: guiding, lecturing and discussions for versatile applications

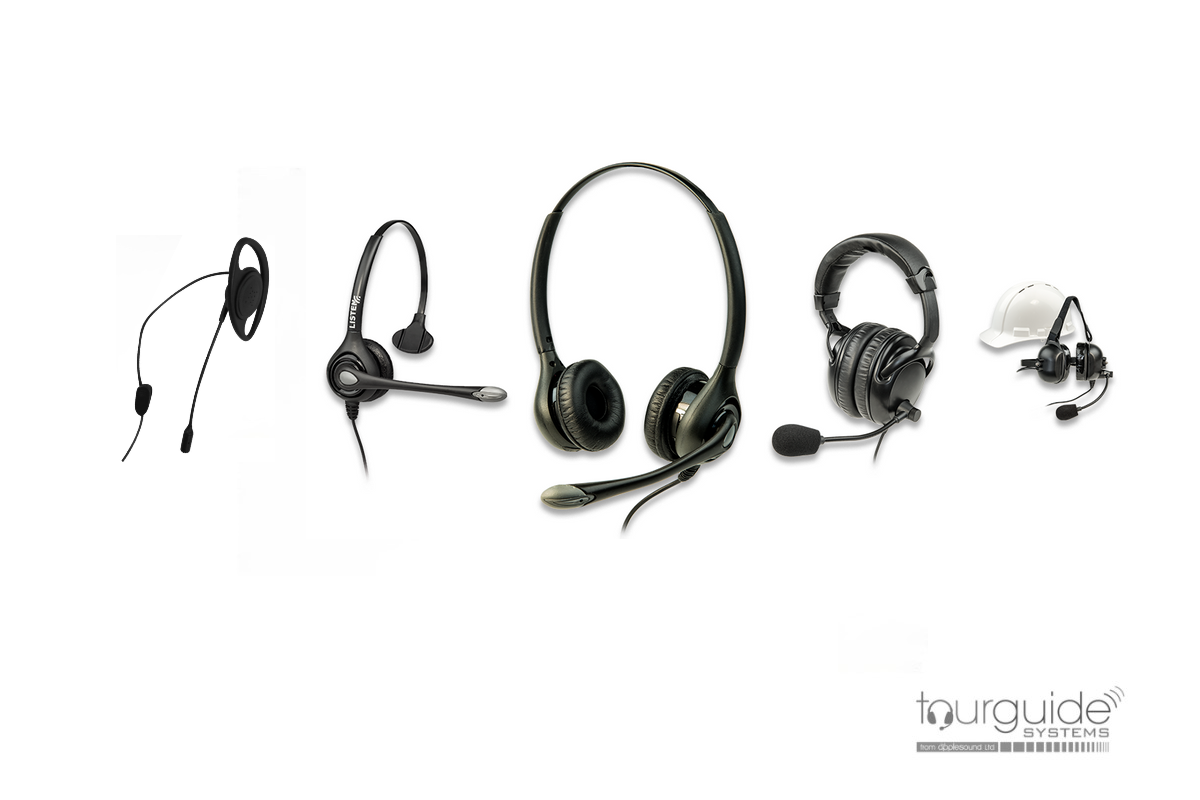

HEADSET OPTIONS

We have a wide range of headphones and headsets available for quiet and noisy environments.



icon battery life 18 hours

BATTERY OPTIONS

Each device requires 2 x AA alkaline batteries for 18+ hours operation.

Optional rechargeable batteries are recommended for frequent use. There are three drop-in chargers available for 5, 25 and 50 devices. All chargers include USB connection and programming software for channel selection and preset functions.

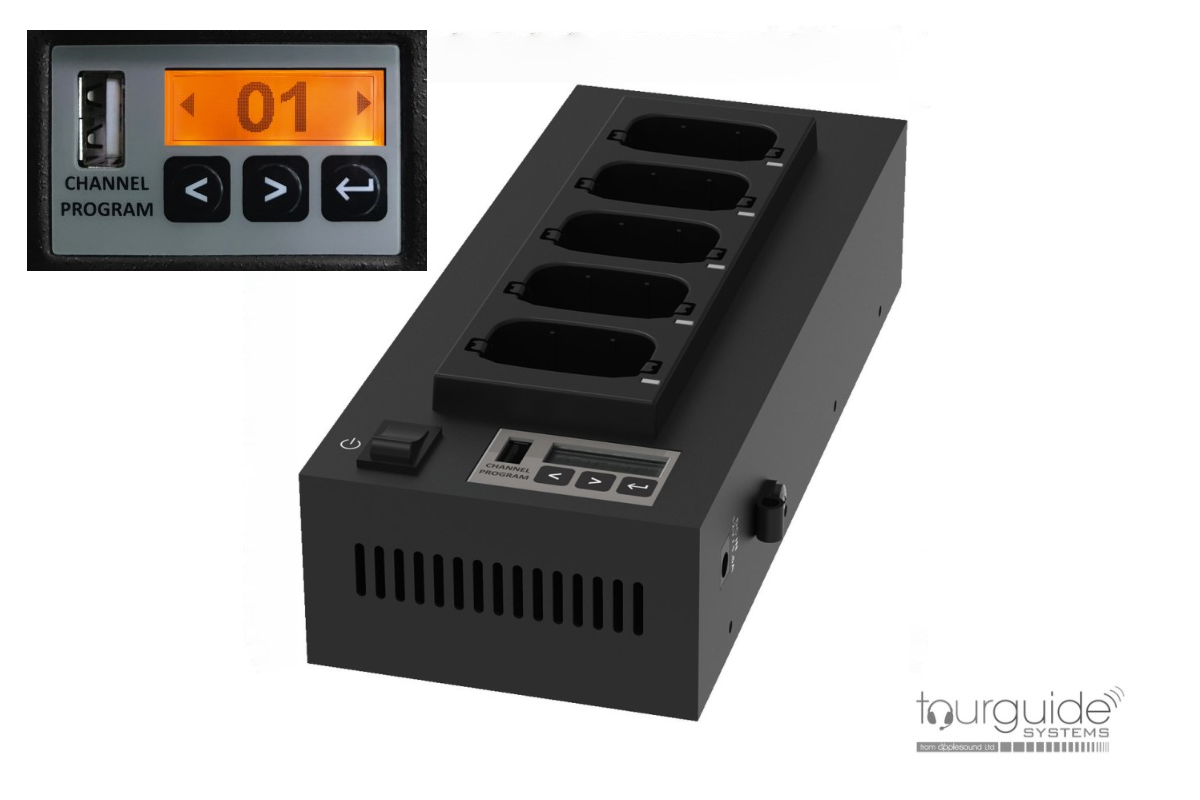

Image of 5-bay charger
5-way charger.

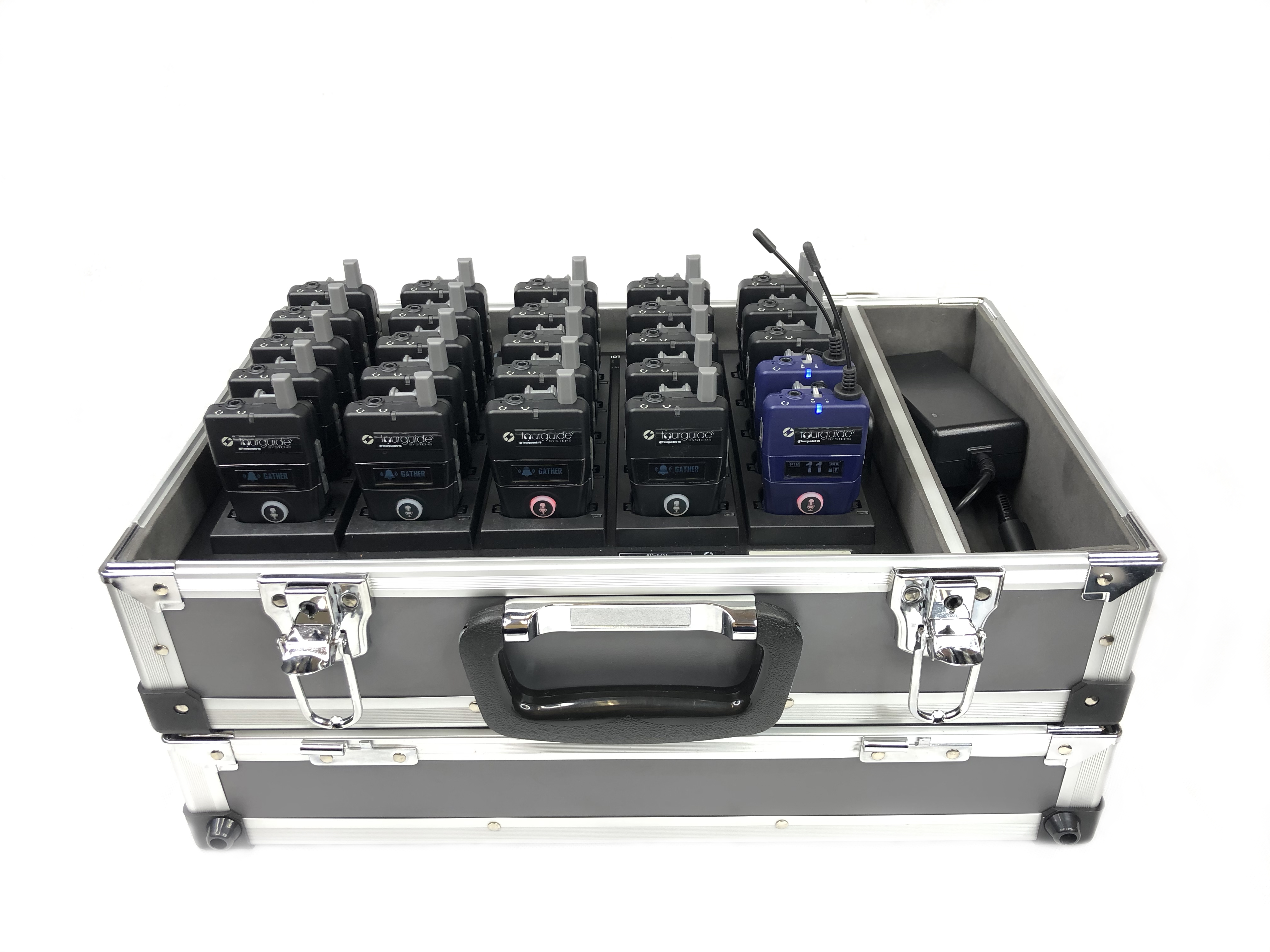

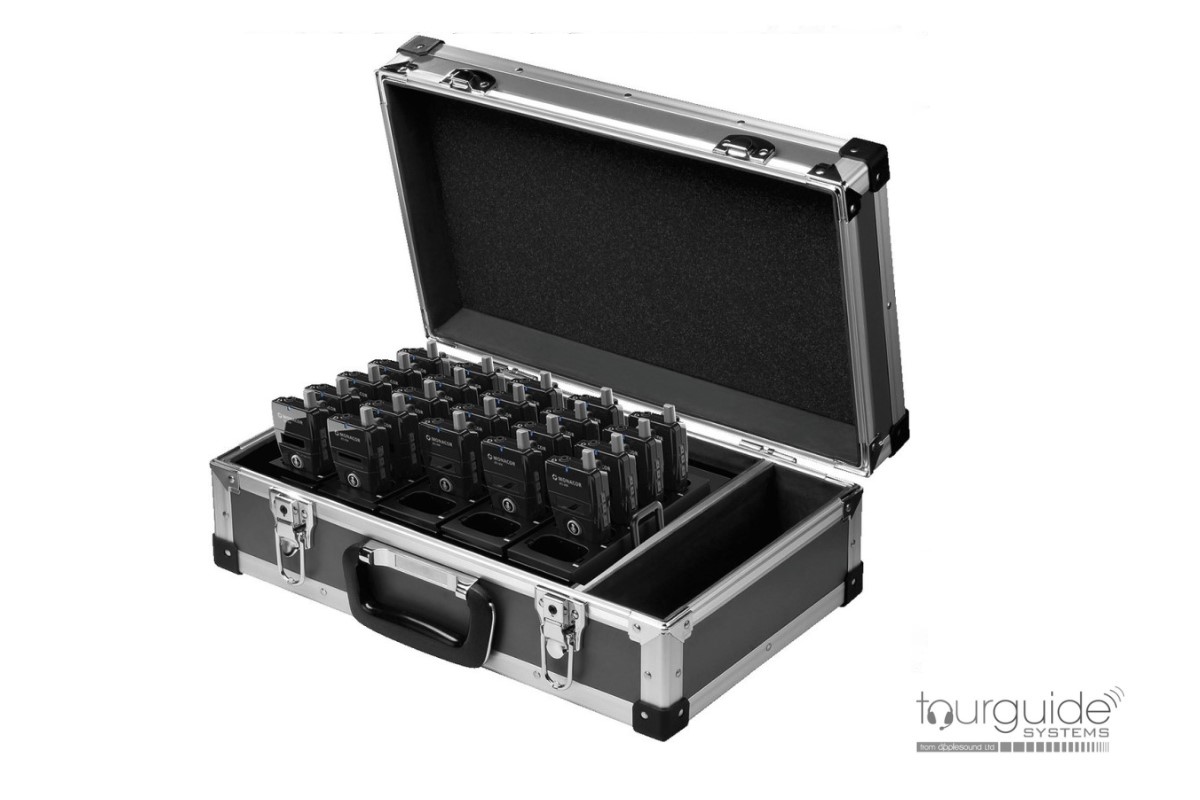

25-way charger-case
Transit case fitted with 25-way drop-in charger.

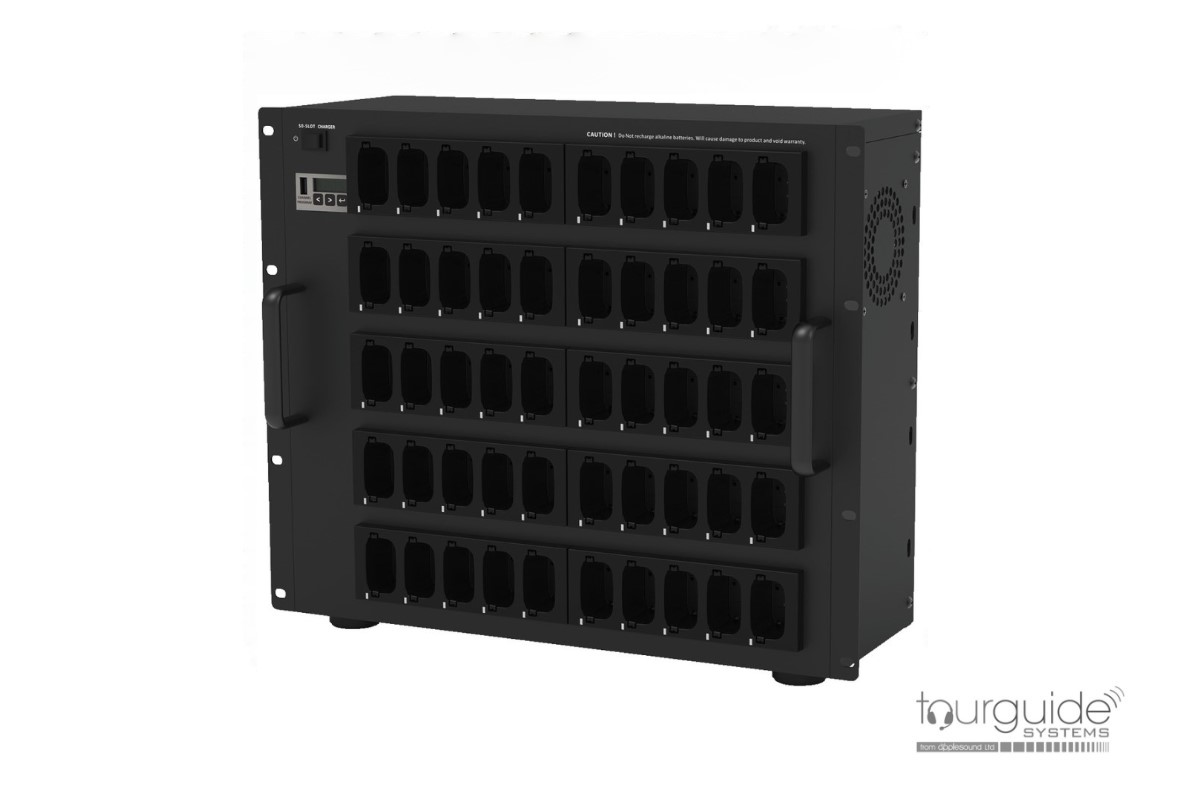

50-way drop-in charger
50-way drop-in charger for larger system storage and charging. May be placed on a desktop, wall mounted, rack mounted into a vertical cabinet or housed in a transit case.

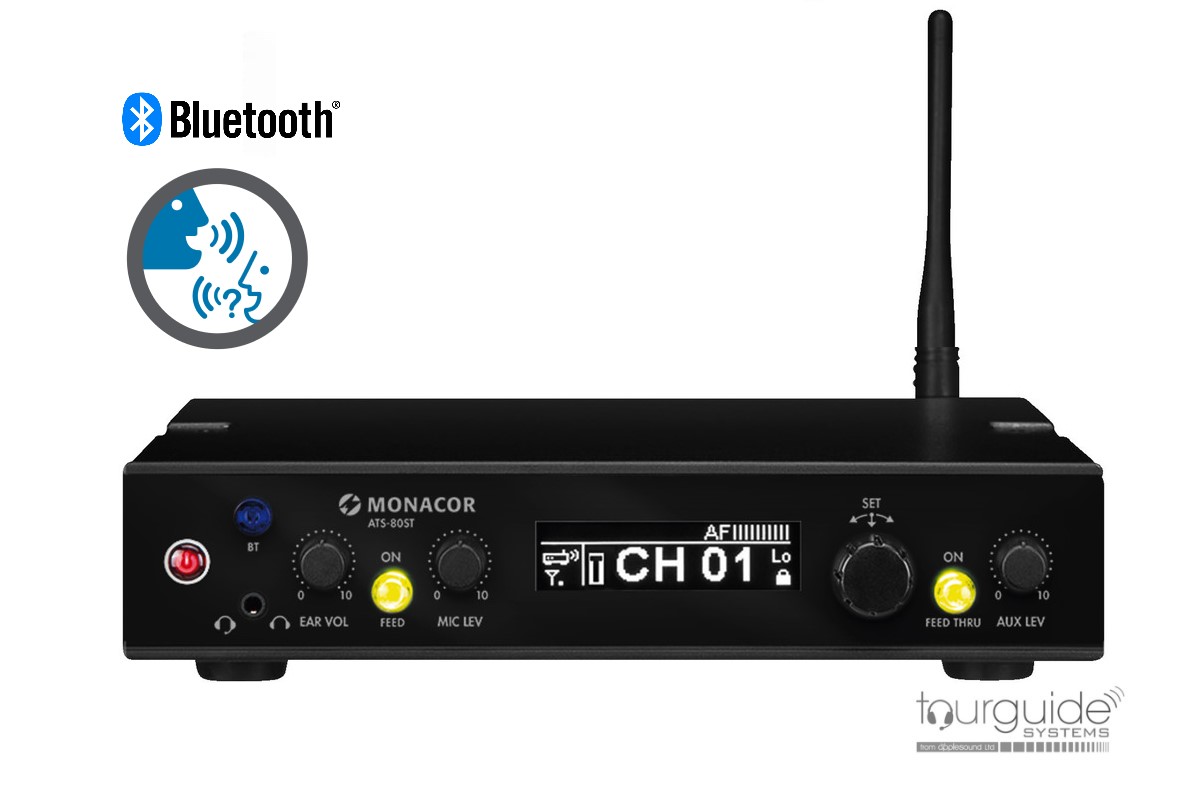

STATIONARY TRANSMITTER

Picture shows ATS-80 stationary transmitter deviceThe ATS-80ST expands the application of the ATS-80 portable devices at fixed locations like theatres, exhibition halls and educational establishments. The stationary transmitter permits connection of a cabled microphone for an interpreter, narrator, or guide; a headset plugged-in at the front panel.  Add an audio line signal (e.g. multimedia source) by cable connection or Bluetooth that can be mixed into the outgoing channel. The ATS-80T/R operate as listen-only when synchronised to the stationary transmitter.
