Passive DI box

Passive DI box

Brand
Tourguide-SYSTEMS
Function
Sound / PA Equipment
Hire Description

Hire the Passive DI box as an add on to your existing system or as part one of our complete tour guide system perfect for tours, conferences, live events, and group activities. Supplied in a secure SKB protective case, fully tested, charged, and ready to use. We provide courier delivery and collection with pre-paid return labels, making the hire process simple and stress-free. Each system is customised to your event, including group size, environment, and special requirements such as hearing aid loops, two-way audio, or protective headsets. Ideal for clear tour group communication, conference audio solutions, and event audio system rental, with expert UK support available from setup to return.

Product Description

OVERVIEW

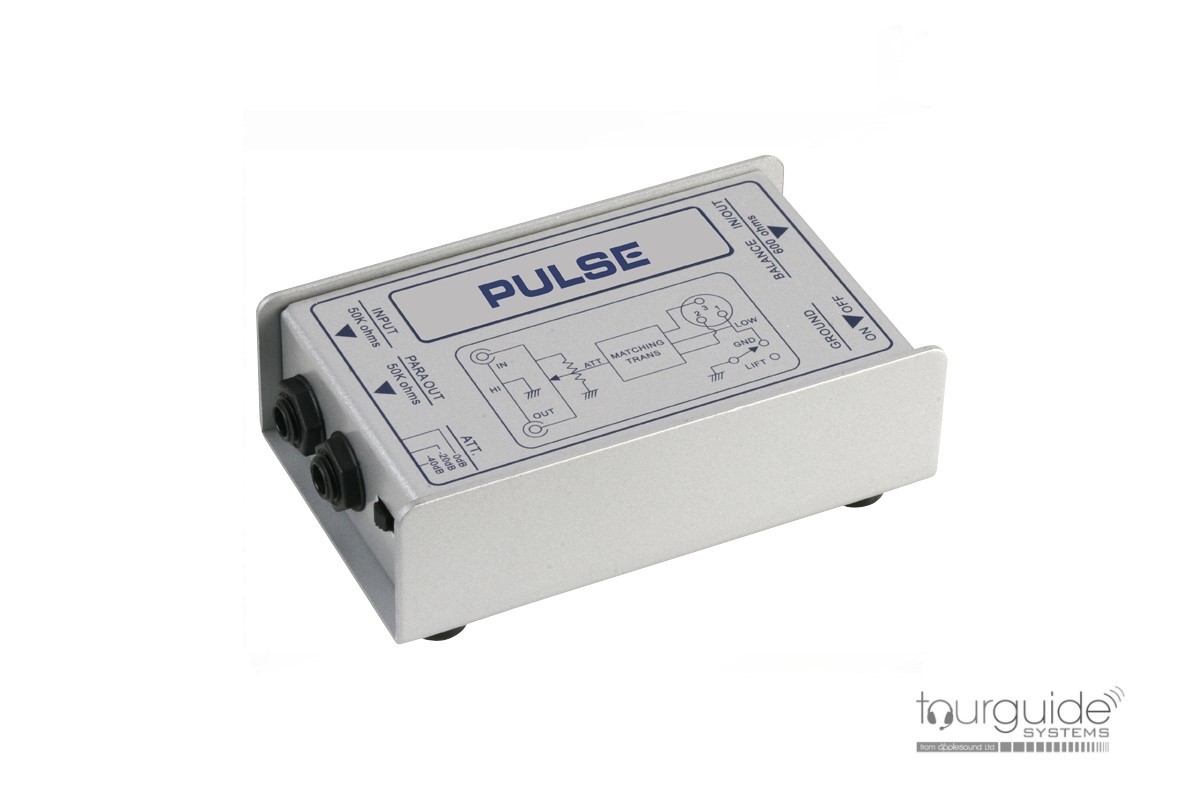

A durable passive direct box which can be used to connect the outputs of musical instruments, laptops, etc to the balanced XLR inputs of mixing consoles or transmitters. We have a wide variety of interconnecting cables available.

1x Unbalanced 6.35mm (¼”) Jack input socket

1x Balanced XLR3 in/output socket

1x Unbalanced 6.35mm (¼”) Jack Link output socket

Attenuation switch: 0dB/-20dB/-40dB

Ground lift switch

Input impedance: 50kΩ

Output impedance: 600Ω

Frequency Response: 15Hz – 30kHz

Dimensions (WxHxD): 130x45x74mm

Weight: 650g
