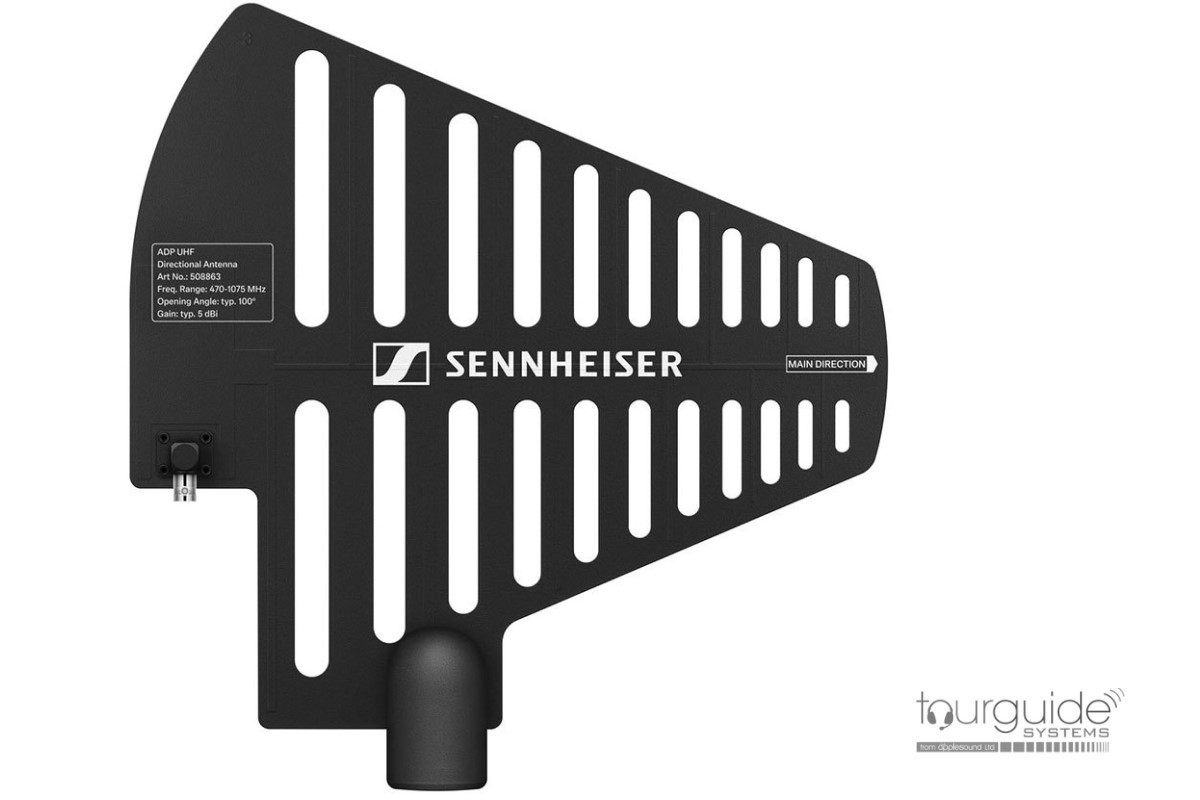

Sennheiser ADP UHF Directional Antenna

Sennheiser EW-D ADP UHF Antenna is a passive external directional antenna for Evolution Wireless systems, SR 2050 IEM and SR 2020 D tourguide transmitter.

Frequency range 470 – 1075 MHz
Apex angle (-3 dB) approx. 100°
Front-to-back ratio > 14 dB
Gain typically 5 dBi
Impedance 50 Ω
Connection BNC female, no DC path
Threads for tripod mounting 3/8" and 5/8"
Dimensions 319 x 310 mm
Weight approx. 320 g

Article No. 508863
