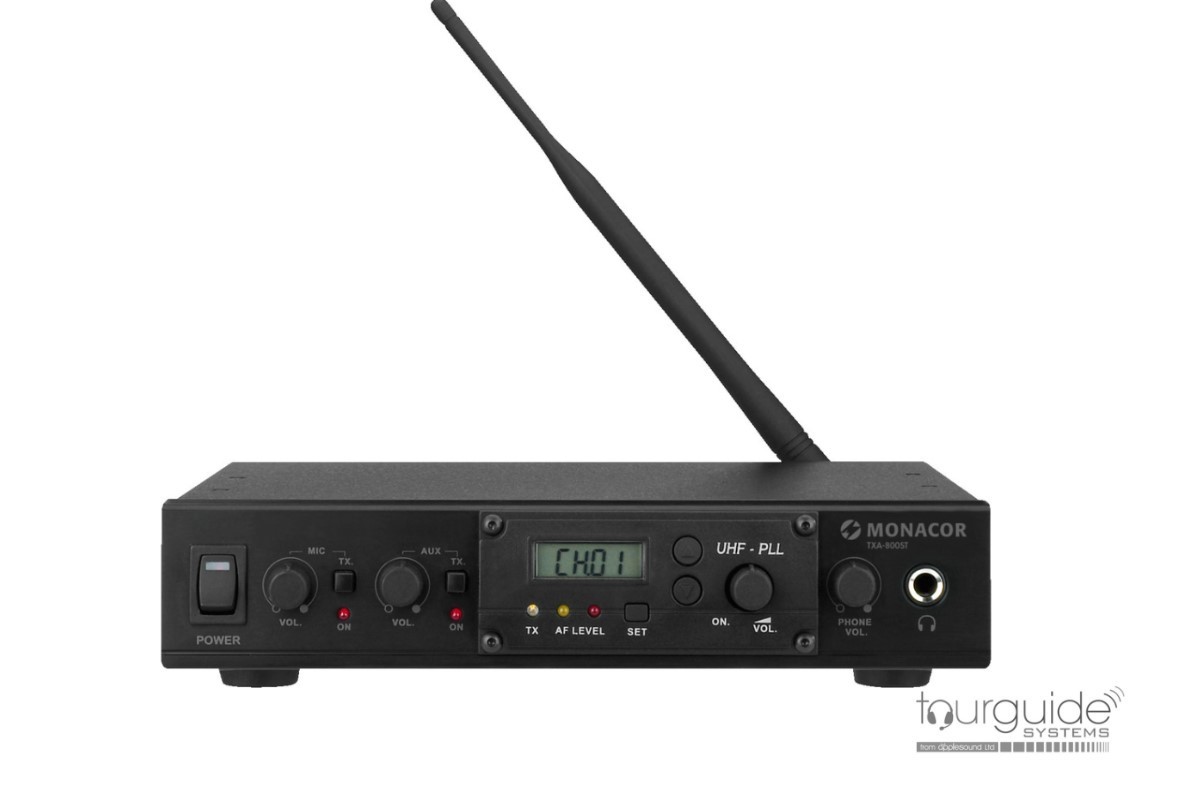

ATS-800ST Stationary Transmitter

The ATS-800ST Stationary Transmitter is for broadcasting from a fixed position to pocket tour guide receivers. Ideal for simultaneous translation, audio description, multimedia playback and personal hearing loop (assistive listening). Simultaneous operation of up to 8 channels with different frequencies (depending on local conditions). Licence-free in the EU & UK. One microphone input and one line audio input may be mixed to the output.

• Audio stereo line input via RCA phono L+R
• Balanced XLR input for dynamic microphone and 6.3 mm microphone input for electrect mics.
• Adjustable headphone output for monitoring
• Backlit LCD for indicating channel/frequency, LEDs for carrier frequency, signal and signal peak
• Power is provided via enclosed plug-in power supply

SPECIFICATIONS

Carrier frequency range: 863.1-864.9 MHz
Transmission Channels: 1 (up to 8 simultaneous channels using multiple transmitters)
Admiss. ambient temp.: 0-40 °C
Transmitting power: 10 mW
Operating range: approx. 50 m
Dimensions: 215 x 50 x 210 mm
Weight: 1.25 kg

Three-year warranty
